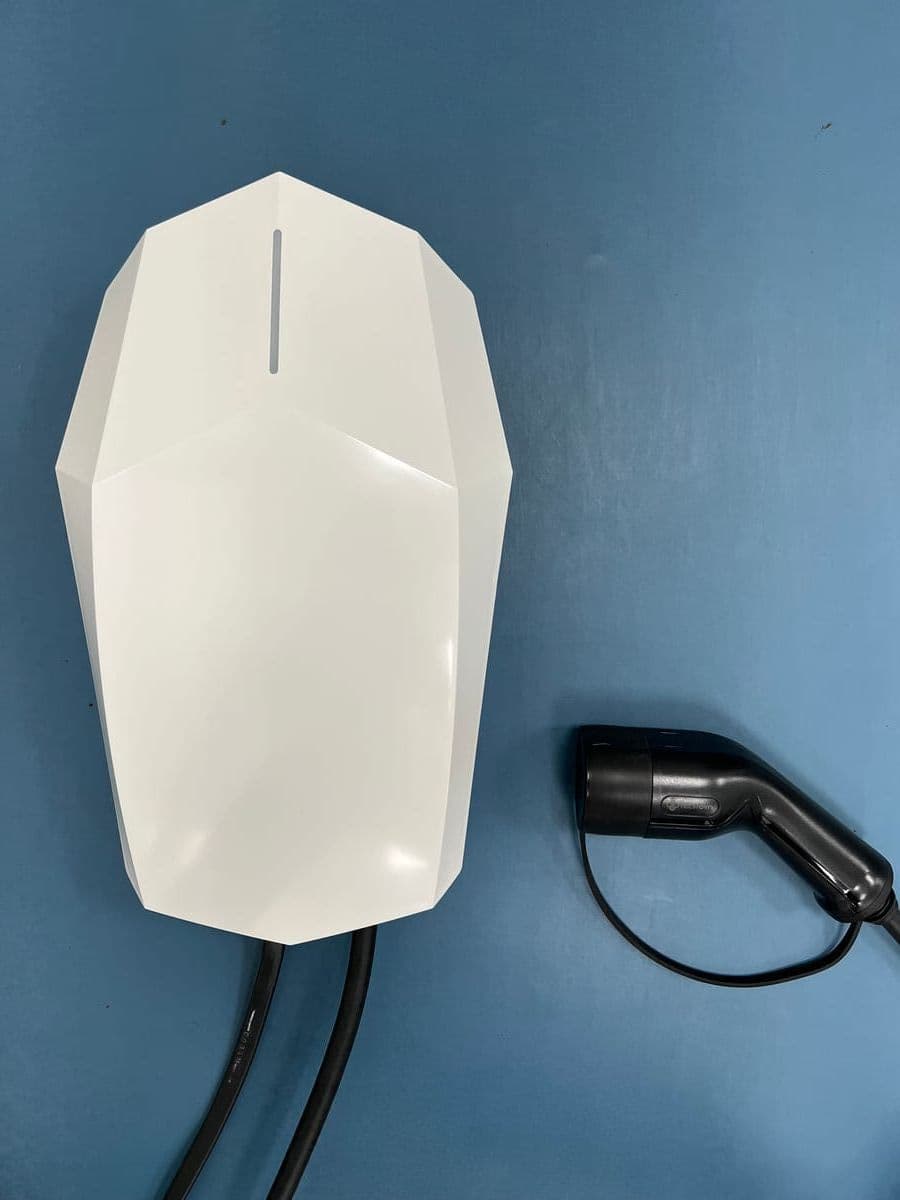

Type 2 AC EV Charger — Commercial Grade
Robust outdoor charger with Type 2 connector for commercial, fleet, and public charging. 3.3kW to 22kW. Single and dual gun options.
Built for Real-World Commercial Charging
Our Type 2 Charger features a modern and robust design built for outdoor deployment. The charger comes standard with WiFi, RFID, and 4G connectivity with optional display and ethernet kit. With OCPP 1.6J and 2.0.1 protocol support, already integrated with most CPO software platforms in India. With Tech OVN's heritage in energy metering, every charger includes a built-in Class 1 energy meter for accurate billing with sustained accuracy even after 10 years. 8 different error indication types through RGB LED help field engineers troubleshoot quickly without needing an LCD screen.
Technical Specifications
| Parameter | Specification |
|---|---|
| Safety | Overcurrent, Over/Under Voltage, Ground Fault Detection, Surge Protection, Emergency Stop |
| Energy Metering | Built-in Class 1 energy meter |
| Connectivity | 4G and WiFi |
| Protocol | OCPP 1.6J, OCPP 2.0.1 |
| Authentication | Mobile App, RFID |
| Connector | Type 2 (5m cable) |
| Power Rating | 3.3kW / 7.4kW / 11kW / 22kW |
| Gun Options | Single or Dual |
| IP Rating | IP55 |
| Display | Optional |
| LED | RGB LED (8 error indication types) |
| Standards | Bharat AC001 also supported |
Key Features
Designed for the realities of commercial charging — outdoors, high-traffic, revenue-grade.
Built for Outdoors
IP55 rated enclosure withstands rain, dust, and temperature extremes. Designed for commercial parking lots, fleet depots, and public charging stations.
Accurate Billing
Built-in Class 1 energy meter with sustained 10-year accuracy. Trust the measurement for revenue-grade billing.
Easy Troubleshooting
8 RGB LED error indication types let field engineers diagnose problems instantly without LCD screens, reducing maintenance costs and response time.
Flexible Authentication
Mobile app and RFID card authentication. Manage user access and billing through your CPO platform.
Frequently Asked Questions
Answers to the most common questions about the Type 2 charger.
Get Type 2 charger specifications and pricing
Tell us about your deployment — power rating, gun config, and quantity — and we'll get back with specs and a quote.
